We carry oil pans that are specific to each year and style of body, so you know they will always be a perfect fit. Most of our pans are specific reproductions of Chrysler's original factory pans, so there won't be any surprises when you drop that engine in. You know they will fit the K-member and other areas of your specific body type perfectly!


Item #

Description

Price

564

Oil Pan - 6 quart - 66-72B Body / 70-74E Body - EXTRA THICK
If you've got a 1966-1972 B body or 1970-1974 E body that you drive on the street, this is THE PAN to use! Because these hold 6 quarts (plus the one in the filter for 7 total), they allow you to run a high volume oil pump, which is much more desirable for performance applications. And because they are an exactly shaped reproduction of the factory 1970-71 E body Hemi pan (Chrysler part number 2951564) they dont hang any lower than a factory pan and offer optimum ground clearance for street driving. No more worrying about scraping the oil pan on those speed bumps or steep driveways. They also include all the internal oil baffles, just like the factory made them for the 426 Hemi. Factory Chrysler Oil pans, and the "made in Taiwan" reproductions on the market are usually made out of steel which is about .049" thick. We've reproduced these in our EXTRA THICK steel, which is about .083" thick, or about 70% thicker than normal. The extra thickness not only helps to keep the pan more rigid and the pan rails straight and flat, but it also helps if you should accidentally scrape the pan on that odd speed bump or driveway. Pan depth is exactly 5". We recommend using our 111-1007 oil pickup if your block has standard 3/8" NPT threads, or our 111-1013 if your block has 1/2" NPT threads. 1/2" NPT threads are usually only found on original 426 Hemi blocks, or if someone has enlarged (drilled and tapped) the 3/8" threads out to 1/2" on a 383/400/440 Wedge block. This pan is supplied in a in a very nice black electroplated finish, the same process used in modern replacement body parts. Can be installed as-is or painted if desired.

In Stock

200-1153

Oil Pan - 6 quart - 66-72B Body / 70-74E Body - Chrome Plated
Our 6 quart performance Big Block pan is a great choice for those 1966-1972 B bodies and 1970-1974 E bodies. Because these hold 6 quarts (plus the one in the filter for 7 total), they allow you to run a high volume oil pump, which is much more desirable for performance applications. And because they are an exact reproduction of the factory 1970-71 E body Hemi pan (Chrysler part number 2951564) they dont hang any lower than a factory pan and offer optimum ground clearance for street driving. No more worrying about scraping the oil pan on those speed bumps or steep driveways. They also include all the internal oil baffles, just like the factory made them for the 426 Hemi. Pan depth is exactly 5". We recommend using our 111-1007 oil pickup if your block has standard 3/8" NPT threads, or our 111-1013 if your block has 1/2" NPT threads. 1/2" NPT threads are usually only found on original 426 Hemi blocks, or if someone has enlarged (drilled and tapped) the 3/8" threads out to 1/2" on a 383/400/440 Wedge block. This pan is supplied in a in a very nice chome plated finish designed to resist corrosion.

In Stock

547

Oil Pan - 6 quart - A or C body with tie rod relief - EXTRA THICK
These are an exact reproduction of the 1966-69 (early style) 426 Hemi B Body pan, Chrysler part number 2780547. Factory Chrysler Oil pans, and the "made in Taiwan" reproductions on the market are usually made out of steel which is about .049" thick. We've reproduced these in our EXTRA THICK steel, which is about .083" thick, or about 70% thicker than normal. The extra thickness not only helps to keep the pan more rigid and the pan rails straight and flat, but it also helps if you accidentally scrape the pan on that odd speed bump or driveway. These pans feature the large "tie rod" dimple which also makes them a great pan to use when doing engine swaps and putting a big block into an "A" body or "C" body application. These are similar to the hard to find "187" or "699" factory pans, however the sump has been made deeper at about 5 3/4" inches, for a larger 6 quart oil capacity, and baffles have been added to the interior to help with oil control. With the half century old 187 and 699 pans getting very hard to find, and the ones that are out there looking extremely beat up, these are also a great answer for those big block engine swaps. We recommend using our 101-1009 oil pickup if your block has standard 3/8" NPT threads, or our 111-1014 if your block has 1/2" NPT threads. 1/2" NPT threads are usually only found on original 426 Hemi blocks, or if someone has enlarged (drilled and tapped) the 3/8" threads out to 1/2" on a 383/400/440 Wedge block. This pan is supplied in a in a very nice black electroplated finish, the same process used in modern replacement body parts. Can be installed as-is or painted if desired.

In Stock

971

Oil Pan - 971 Stamping - 73 & Later B Body - EXTRA THICK
We have finally reproduced the long sought after "971" pan! Originally sold as Chrysler part number 3614970, this is the ONLY pan which will work in 1973 and later B bodies. Mopar Performance did sell these as a reproduction item for many years under part number P5249063, although they are now long discontinued. They were also sold by Moroso as part number 20765, also now discontinued. Moroso also made them into an aftermarket deep sump version as well. These also fit Mid (1966-72) and Early (1962-65) B bodies as well. Due to the how far back the front of the sump is, this pan allows for more K member clearance than any other pan, also making them a great choice for F/J/M swaps. Schumacher Creative Services uses and recommends this pan for many of their swaps as well. These are about 5" deep and hold 4 quarts of oil, plus one in the filter, for 5 quarts total. They also include all the internal oil baffles, just like the factory made them for HP engines. The original factory 971 pans made by Chrysler were usually made out of steel which was about .049" thick. We've reproduced these in our EXTRA THICK steel, which is about .083" thick, or about 70% thicker than normal. The extra thickness not only helps to keep the pan more rigid and the pan rails straight and flat, but it also helps if you should accidentally scrape the pan on that odd speed bump or driveway. We recommend using our 111-1007 oil pickup if your block has standard 3/8" NPT threads. This pan is supplied in a in a very nice black electroplated finish, the same process used in modern replacement body parts. Can be installed as-is or painted if desired.

In Stock

121-1030

Oil Pan - Center DEEP 7 Sump, 7 Quart - Gold Irridite plated - New
Shown here is our brand new DEEP SUMP PERFORMANCE oil pans. These are similar in quality to brand name pans that cost several times as much. The sump measures 7 inches deep and holds 7 quarts, nearly twice the capacity of a stock Chrysler pan. We have the matching deep oil pickups available in both 3/8" and 1/2" (Hemi) sizes on our Oil Pickups page. Made from heavy gauge steel and then gold irridite plated for good looks and corrosion resistance, these will fit 1966 and later "B" bodies and '70 and later "E" bodies, and some other center sump "car" applications. Includes full internal oil baffle, just like the original Chrysler high performance pans. Since it is a new pan, there will be no warpage of the pan rail surface, dents in the bottom of the sump, or other problems. Actual shape/appearance may differ slightly from the picture. A great quality performance pan at a very reasonable price.

In Stock

121-1002

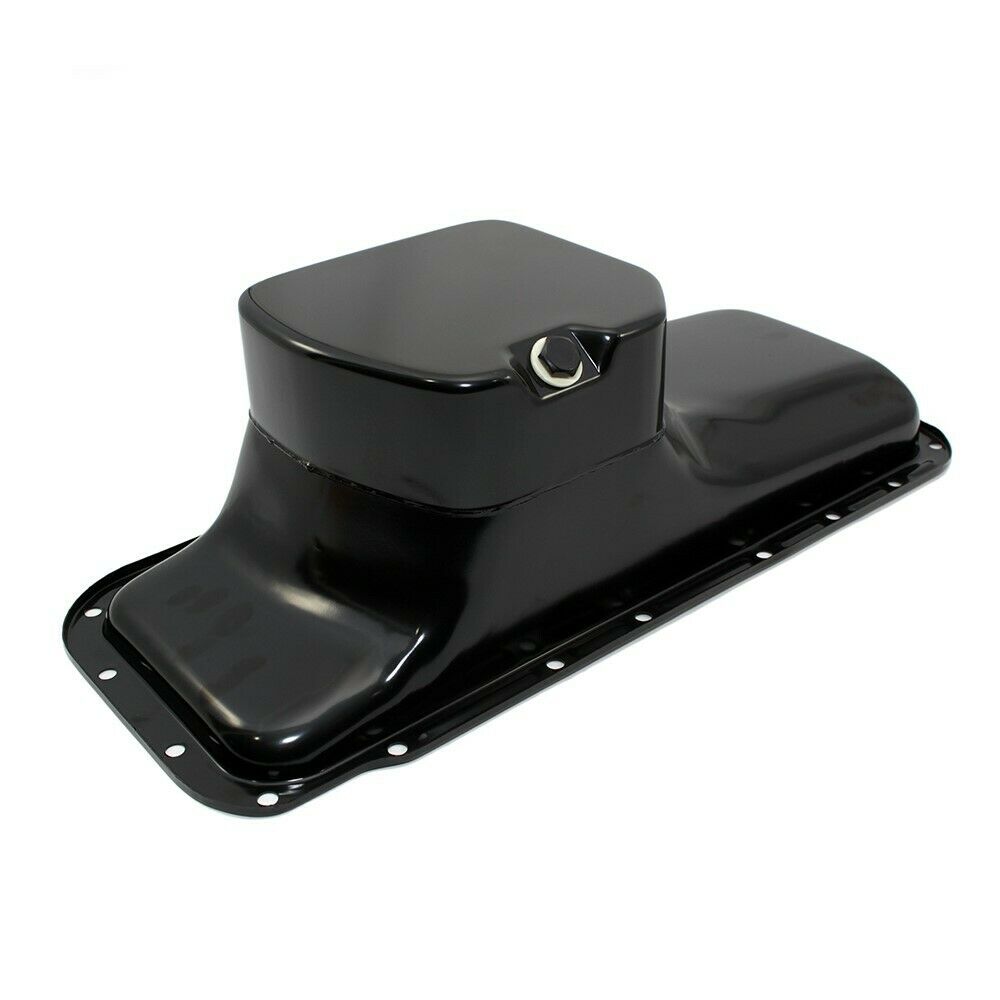

Oil Pan - Center DEEP 7 Sump -7 Quart - Black
Shown here is our brand new 7 quart DEEP SUMP PERFORMANCE oil pan. These are similar in quality to brand name pans that cost several times as much. The sump measures 7 inches deep and holds 7 quarts, nearly twice the capacity of a stock Chrysler pan. We have the matching deep oil pickups available in both 3/8" and 1/2" (Hemi) sizes on our Oil Pickups page. Made from heavy gauge steel. These will fit 1966 and later "B" bodies and '70 and later "E" bodies, and some other center sump "car" applications. Includes full internal oil baffle, just like the original Chrysler high performance pans. Since it is a new pan, there will be no warpage of the pan rail surface, dents in the bottom of the sump, or other problems. A great quality performance pan at a very reasonable price.

In Stock

121-1003

Oil Pan - Center DEEP 7 Sump, 7 Quart - Plain Steel
Shown here is our brand new plain steel DEEP SUMP PERFORMANCE oil pan. These are similar in quality to brand name pans that cost several times as much, and are a great choice if you plan on powder coating the pan or painting it engine color. The sump measures 7 inches deep and holds 7 quarts, nearly twice the capacity of a stock Chrysler pan. We have the matching deep oil pickups available in both 3/8" and 1/2" (Hemi) sizes on our Oil Pickups page. Made from heavy gauge steel. These will fit 1966 to 1972 "B" bodies and '70 and later "E" bodies, and some other center sump "car" applications. Includes full internal oil baffle, just like the original Chrysler high performance pans. Since it is a new pan, there will be no warpage of the pan rail surface, dents in the bottom of the sump, or other problems. Actual shape/appearance may differ slightly from the picture. A great quality performance pan at a very reasonable price.

In Stock

200-1076

Oil Pan - Fabricated Aluminum - 8 Quart
Our brand new hand FABRICATED ALUMINUM oil pans are 100% USA made in house. Fully TIG welded from .090" thick (11 gauge) sheet aluminum with a solid billet rail, they rival or exceed the quality of similar "name brand" parts that cost several times as much. We even include clearance provisions for the dipstick and internal oil pickups, which many of the high dollar pans usually don't bother with! The sump measures 7 inches deep and features a "kick-out" on the passenger side, bringing the capacity to 8 quarts, and helping with ground clearance while still holding double the capacity of a stock Chrysler pan. These can be used with internal or external oil pickups. We have the matching deep oil pickups available in both 3/8" and 1/2" (Hemi) sizes on our Oil Pickups page. These will fit '66 and later "B" and '70 and later "E" bodies, and many other center sump "car" applications. Don't forget a drain plug (also listed.)

In Stock

200-1077

Oil Pan - Fabricated Aluminum - 10 Quart
Our brand new hand FABRICATED ALUMINUM oil pans are 100% USA made in house. Fully TIG welded from sheet aluminum with a solid billet rail, they rival or exceed the quality of similar "name brand" parts that cost several times as much. We even include clearance provisions for the dipstick, which many of the high dollar pans usually don't bother with! This "super stock" style pan holds the oil down at the bottom of the pan, far away from the crank to help reduce windage. The sump measures 8 inches deep and features a large "kick-out" on the passenger side, bringing the capacity to an amazing 10 quarts. These include an integral "pass through" tube for the centerlink, and fit 66-74 B bodies and 70-74 E bodies. They are designed to be used with external oil systems, and can use either swinging or fixed external pickups. Check out our Oil Pickups page for some great deals on external pickups. The inside of this pan has internal baffles at the front and rear to prevent oil sloshing.

In Stock

121-1060

Oil Pan - 4 quart - 66-72B Body / 70-74E Body - Gold Irridite Zinc Plated
For those looking for a stock replacement type oil pan, these are just the ticket. These hold 4 quarts, plus the one in the filter for 5 total. They even feature internal baffling to prevent the oil from sloshing around under hard acceleration or when cornering. Pan depth is approximately 5". They fit all big blocks, and are a great choice for those 1966-1972 B bodies and 1970-1974 E bodies. Since these are new, there will be no warpage of the pan rail surface, dents in the bottom of the sump, etc. This pan is supplied in a in a very nice gold irridite zinc finish designed to resist corrosion. Overall a nice looking pan at a reasonable price. Use our 111-1008 pickup with this pan.

In Stock

121-1000

Oil Pan - 4 quart - 66-72B Body / 70-74E Body - Chrome Plated
For those looking for a stock replacement type oil pan, these are just the ticket. We have done detailed scientific studies showing that having a chrome oil pan underneath your car can reduce wind resistance enough to take nearly a half second off your quarter mile time.... Ok, maybe not, but it does look cool and the plating helps with corrosion resistance. These hold 4 quarts, plus the one in the filter for 5 total. They even feature internal baffling to prevent the oil from sloshing around under hard acceleration or when cornering. Pan depth is approximately 5". They fit all big blocks, and are a great choice for those 1966-1972 B bodies and 1970-1974 E bodies. Since these are new, there will be no warpage of the pan rail surface, dents in the bottom of the sump, etc. This pan is supplied in a in a very nice chome plated finish designed to resist corrosion. Overall a nice looking pan at a reasonable price. Use our 111-1008 pickup with this pan.

Special Pricing Available In Stock

640

Oil Pan - Rear Sump Truck - EXTRA THICK
We now offer a nice EXTRA THICK reproduction of the very hard to find rear sump truck oil pan. This was originally sold as Chrysler part number 3577640 and 4027236. Factory Chrysler Oil pans, and the "made in Taiwan" reproductions on the market are usually made from steel which is about .049" thick. We've reproduced these in our EXTRA THICK steel, which is about .083" thick, or about 70% thicker than normal. The extra thickness not only helps to keep the pan more rigid and the pan rails straight and flat, but it also helps if you accidentally scrape the pan on that odd speed bump or driveway. These are about 6" deep and hold 6 quarts of oil, plus one in the filter, for 7 quarts total. Will not fit stroker windage trays, can be used with stock stroke windage trays only. We also carry the matching oil pickup (111-1002), dipstick (111-1001), and dipstick block hole plug (109-1560), all of which are required to use this pan.

In Stock

200-1154

Oil Pan - 6 quart - 1962- 1965 B Body - Black Electroplate
Our 6 quart performance Big Block pan is a great choice for those 1962-1965 B bodies. Because these hold 6 quarts (plus the one in the filter for 7 total), they allow you to run a high volume oil pump, which is much more desirable for performance applications. And because they are an exact reproduction of the factory early B body Max Wedge pan (Chrysler part number 2402307) they are factory designed by Chrysler to fit this chassis exactly. Even though the sump is large enough to hold six quarts, the factory engineers designed it perfectly to not have any interference with the K member on the front end and steering centerlink in the rear. Plus, they dont hang down any lower than a factory pan and offer optimum ground clearance for street driving. No more worrying about scraping the oil pan on those speed bumps or steep driveways. They also include all the front and rear internal oil baffles, just like the factory made them for the Max Wedge engines. Pan depth is about 4 1/2". We recommend using our 111-1007 oil pickup, available on our oil pickups page. This pan is supplied in a in a very nice black finish, can be installed as-is or painted engine color if desired.

In Stock

200-1155

Oil Pan - 6 quart - 67-69 Big Block A Body Factory Repro Pan
We now offer an exact reproduction of the Chysler 2863892 oil pan that came on original big block 1967-69 A body cars. It even includes the original "893" number stamped into it. Because it's an exact reproduction of the factory pan, you can be sure it will be an exact fit. Pan depth is about 4 1/2". We recommend using our 111-1007 oil pickup, available on our oil pickups page. This pan is supplied in a in a very nice black finish, can be installed as-is or painted engine color if desired.

In Stock

200-1160

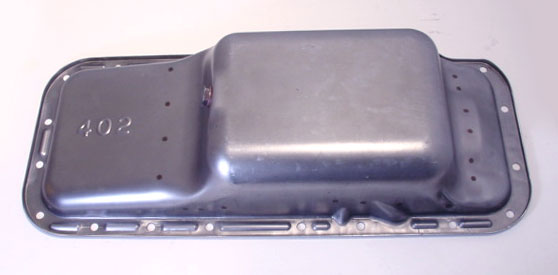

Oil Pan - 4 quart - 402 Stamping - New Reproduction
We offer an exact factory reproduction of the "402" oil pan, Chrysler part number 2532401. These were originally supplied from the factory on most all high performance 383 and 440 cars from 1966-1971. These hold 4 quarts (plus the one in the filter for 5 total.) They also include all the front and rear internal oil baffles, just like the factory made them. Pan depth is about 4 1/2". We recommend using our 111-1007 oil pickup, available on our oil pickups page. This pan is supplied in a in a very nice black finish, can be installed as-is or painted engine color if desired. For most performance applications, we would recommend using our 6 quart Hemi pan instead. The hemi pan fits the chassis the same, but also offers the extra capacity of 2 additional quarts of oil. However if you are looking for the correct "402" stamping for a restoration or just want to keep what was orignally there from the factory, then these are a good choice.

In Stock

200-1161

Oil Pan - 4 Quart - 1958-64 Early Style - New Reproduction
We now offer a new reproduction of the "early style" pan used on C bodies starting in 1958 until 1964. These were originally Chrysler part number 1737768, 1944694 and 2268459, and possibly other numbers as well. When the big block first came out in 350, 361, 383 and 413 cubic inch versions in Plymouth Furys, Belvederes, and the big Chryslers, these were the pans that were used. Use our 101-1009 pickup with this pan.

In Stock

112-1003

Oil Pan Gasket
We carry a nice cork type oil pan gasket for those that prefer this style of gasket contruction. These fit all big blocks, all years. These are the same oil pan gaskets that are supplied in our complete kit , however when running a windage tray, two are required (one on the top, and one on the bottom of the tray.) We offer them separately so you can get the extra one needed if you are running a windage tray.

In Stock

109-1553

Bolt Kit - Oil Pan - Performance 12 Point
Our Performance 12 point bolt kits are a nice looking option that features grade 8 strength, black oxide coating, and with a price that doesn't break the bank. This kit includes all the bolts you need to attach the oil pan to the engine block. Custom matching, small diameter washers are also included with this kit.

In Stock

101-1007

Bolts - Oil Pan - New
When getting a new oil pan, don't forget the bolts. We carry this package of 20 brand new zinc plated 5/16" bolts which feature an oversized flange to spread the load out to the oil pan rail and make sure the gasket is held firmly and evenly. The flange is also serrated to ensure the bolts lock in place and won't "back off" due to vibration. These work to attach any oil pan to any engine, and are also compatible with windage trays.

In Stock

200-1090

1/4 Main Girdle Setup
Our 100% USA MADE girdle setups are just the ticket to add the ultimate in strength to the bottom end of your high horsepower big block Mopar. Absolutely recommended for builds over 600 horsepower. During engine operation, the power and twisting force of the engine can cause the main studs and caps to distort under load. Normally, the block is doing the best it can to hold all these forces together, however stock blocks were originally designed in the 1950's for engines making 300-400 horsepower, topps. Today's stroker engines with long armed cranks can make 600-800 horsepower without much trouble at all. All those increased crank strokes act like a longer prybar during operation, greatly increasing the available leverage, which in turn multiplies the internal loads the engine has to deal with by several times. Under these heavier loads, the main studs can act a little like a "flagpole or antenna in the wind." With nothing to hold them steady, they can sway back and forth and side to side, causing the main caps to move or distort under stress, or even "jump" slightly off the block (known as capwalk.) All this can lead to possible main cap and/or bearing damage or failure. In a worst case scenario, this flexing can even lead to the block cracking down the center. These girdles act similar to the way in which the guide wires on a flagpole or antenna would work. They anchor the outer or lower end of the main studs, and keep them in place under serious loads. They also help to generally tie together and strengthen the bottom end. By directly connecting the block's deep oil pan "skirt" to the blocks main cap & stud assembly, (which, in turn, is connected directly to the center of the block or the "core" of the engine) they help all components of the engine's bottom end to be linked together into one solid, interconnected assembly. This is a HUGE improvement over the factory's arrangement, where all the components of the bottom end (main caps & studs, oil pan rails, etc are all separate non connected components which protrude from center core of the engine block. We make these from super strong 1/4" solid steel plate, (not 3/16" aluminum like some of the others we've found on the market.) We've found 1/4" to be thick enough to do a great job, but not so thick that it causes interference hassles with the oil pan to k-member clearance, etc. This setup includes all the hardware needed to install, including oil pan studs and bolts, assorted thicknesses of custom shim packs, main studs, nuts, hardened washers, etc. All the main studs, nuts and washers are custom made 190,000 PSI pieces sourced directly from ARP, so you know the quality is top notch. The girdle is clamped and held in place with double nuts (both on TOP and underneath, so there is no distortion or movement.) If your block has already been machined with studs, those studs can be replaced with the studs included with our girdle without a problem. If your block currently has bolts, it will need to be re-line honed because replacing bolts with studs will cause the main housing bores to distort slightly. Detailed installation instructions are included with this kit. It technically "can" be installed with the engine still in the car, but sure is a heck of a lot easier to do it with the engine flipped over on a stand. A great value and some of the best insurance you can buy! While our girdle setup does work great with factory main caps, if you want the absolute ultimate in strength, (short of an aftermarket block) use this with our aftermarket billet main caps!

In Stock

121-1052

Magnetic Drain Plug
We also have brand new replacement oil pan drain plugs with a magnet fixed inside them to catch any stray metal bits before they make their way back into the oil pump and through the motor. If some metal shavings somehow get flushed around inside your engine, this could be the best money you ever spent. Fits all Chrysler pans. Includes nylon washer/gasket as shown. Exact appearance may differ slightly from the picture.

In Stock

200-1175

Dropped Centerlink - 1962-70 B Body
It's a common issue on Mopars to have the rear of the oil pan making contact with the centerlink. This is known to be a very "tight fitting" area, and is often due to aftermarket oil pans being made deeper than stock ones, aftermarket engine mounts being thinner than OEM factory ones- which causes the engine to sit lower, past collision damage, incorrect parts, or even just plain old "sloppy" production tolerances from back when the cars were thown together on the assembly lines. And then, if you are running a windage tray, or especially a Main Girdle Plate, it drops the pan down EVEN FARTHER!! Our new dropped centerlink is just the solution! We've reproduced the factory centerlink to 100% OEM specs, except the center part which goes directly underneath the oil pan has been "dropped" by 3/4" inch, to give you a bunch of extra clearance under the oil pan. Click on the extra picture to see the two parts compared together in the same picture. These are also usable as a service replacement item if you just need a brand new centerlink (even if you don't necessarily need the additional oil pan clearance.) As far as we are aware, these are the only 100% NEW MANUFACTURED centerlinks currently available on the market. A long awaited solution to an age old problem! These replace factory part number 1858015.

In Stock

200-1188

Dropped Centerlink - 1970-74 E Body / 1971-72 B Body

It's a common issue on Mopars to have the rear of the oil pan making contact with the centerlink. This is known to be a very "tight fitting" area, and is often due to aftermarket oil pans being made deeper than stock ones, aftermarket engine mounts being thinner than OEM factory ones- which causes the engine to sit lower, past collision damage, incorrect parts, or even just plain old "sloppy" production tolerances from back when the cars were thown together on the assembly lines. And then, if you are running a windage tray, or especially a Main Girdle Plate, it drops the pan down EVEN FARTHER!! Our new dropped centerlink is just the solution! We've reproduced the factory centerlink to 100% OEM specs, except the center part which goes directly underneath the oil pan has been "dropped" by 3/4" inch, to give you a bunch of extra clearance under the oil pan. Click on the extra picture to see the two parts compared together in the same picture. These are also usable as a service replacement item if you just need a brand new centerlink (even if you don't necessarily need the additional oil pan clearance.) As far as we are aware, these are the only 100% NEW MANUFACTURED centerlinks currently available on the market. A long awaited solution to an age old problem!

These replace factory part number 2535877, which is very similar to the 1962-70 B Body centerlink (factory part number 1858015 or our dropped version, 200-1175) , except one side of the link "kicks out" because they changed the angle of the steering box slightly on the K-member. If you click on the additional pictures, you can see our scans of the two bars, and easily what the difference is. In the first picture, you can see both bars laid next to each other. The grey bar is the early one (200-1175), and the blue bar is the later one (200-1188.) In the second picture, both scans are laid "on top" of each other, so you can see the exact difference of how one side "kicks out" farther.

In Stock
