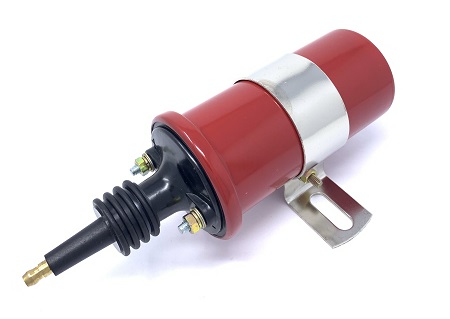

Our canister style performance coil is a great match for our performance distributors. These use a 100:1 turn ratio to feature 45,000 volts of power. They have a primary resistance of 0.7 ohms, and a secondary resistance of 4.5K ohms. They feature a peak current of 140mA and a spark duration of 350uS. A great choice for street or strip applications! These feature a "male" style terminal to ensure a positive locking connection. The mounting bracket is also included, as shown.

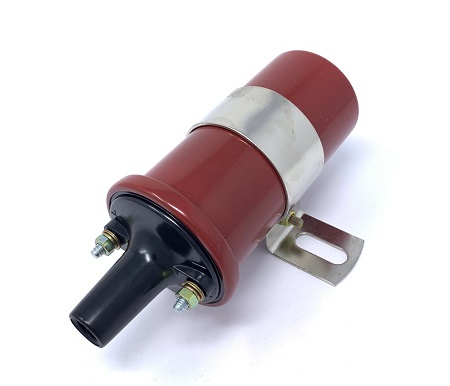

Our canister style performance coil is a great match for our performance distributors. These use a 100:1 turn ratio to feature 45,000 volts of power. They have a primary resistance of 0.7 ohms, and a secondary resistance of 4.5K ohms. They feature a peak current of 140mA and a spark duration of 350uS. A great choice for street or strip applications! These feature a factory style "female" terminal. The mounting bracket is also included, as shown.
For the ultimate in high energy spark, our "E Core" style coil puts out a massive 50,000 volts! These use a 100:1 turn ratio and have a primary resistance of 0.35 ohms, and a secondary resistance of 8.5K ohms. They feature a peak current of 260mA and a spark duration of 250uS. A great choice for hot street or strip applications! These are designed for long term endurance, so they are no problem for those long trips on the highway or extended city driving. They feature a "male" style terminal to ensure a positive locking connection. The aluminum case features integrated mounting points as shown. Wiring harness is also included!
